When a diver launches off a 10-meter platform, they have about 1.4 seconds before hitting the water. In that brief moment, they twist, somersault, and straighten out, all while obeying the same laws of physics that govern a thrown baseball or a spinning ice skater.
Most spectators see only the grace and the splash (or lack thereof). But behind every perfect dive is a precise balance of gravity, angular momentum, and fluid dynamics. Understanding the physics not only explains how divers perform their incredible feats, but also why a ‘rip’ entry is so satisfying to watch—and so hard to achieve.
Gravity and the Fall
A diver leaving the platform is, at first, a projectile. Gravity pulls them downward at 9.8 meters per second squared, the same acceleration for any object. From 10 meters up, the fall lasts about 1.4 seconds, and they hit the water at roughly 14 meters per second—about 50 kilometers per hour.
That’s fast, but the diver isn’t just falling. They push off with a horizontal component to their velocity, creating a parabolic arc. Air resistance is so small at these speeds that the path is nearly perfect projectile motion, exactly as if they were a ball thrown at an angle. The center of mass follows that parabola, while the diver rotates around it.
The Spinning Secret: Angular Momentum
Here’s the key: once in the air, a diver’s total angular momentum is conserved. That means if they start spinning, they’ll keep spinning unless something changes their shape. The trick is that changing shape changes how fast they spin.

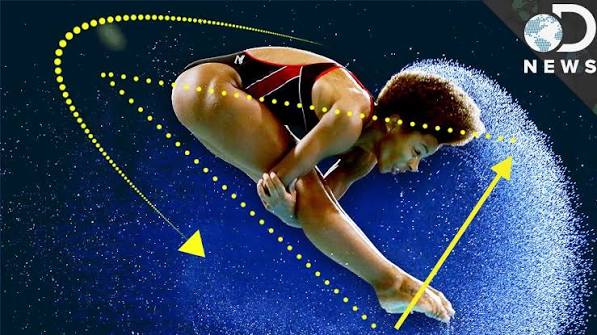

Imagine a figure skater pulling their arms in to spin faster. A diver does the same thing by tucking into a ball. By pulling their arms and legs close to the center of mass, they reduce their moment of inertia—the resistance to rotation. Since angular momentum is the product of moment of inertia and spin rate, reducing the first increases the second. Elite divers can reach 4–5 revolutions per second in a tight tuck.
To slow down for the entry, they extend their body, increasing moment of inertia and decreasing spin. This is how they control exactly how many somersaults they complete before straightening out.
Twisting: Not What You Think
Twists are even more subtle. A twist isn’t a separate rotation; it’s a reorientation of the body’s rotation axis. The diver uses asymmetric arm movements or a slight bend at the hip to convert some of the somersault rotation into a twist. This is the same principle that lets a cat right itself mid-air: by rotating its front and rear halves in opposite directions, it changes its orientation without external torque.
A diver initiates a twist by moving one shoulder or arm differently, which shifts the axis of rotation. Because angular momentum is a vector—it has both magnitude and direction—the total remains constant, but the distribution between somersault and twist can change.
The Takeoff: Where It All Begins
Most of a dive’s success is decided at the takeoff. For platform divers, the board is rigid, so they must generate all their rotation and height from muscle power alone. For springboard divers, the board acts like a spring: the diver’s downward force compresses it, storing elastic potential energy, which is released on the rebound.
Springboards have adjustable fulcrums to change stiffness, letting divers tune the energy return. The takeoff angle and speed determine the trajectory of the center of mass, and the eccentric force applied at takeoff sets the initial angular momentum. Get this right, and the rest of the dive is about controlling that momentum.
The Perfect Entry: The Physics of the Rip
A clean entry—the ‘rip’—is a hydrodynamic marvel. When a diver enters vertically with hands together and body streamlined, they create a cavity in the water that closes smoothly behind them. The reduced surface area minimizes drag and prevents the water from splashing outward.
The key is to enter with the body as vertical as possible, ideally at 90 degrees to the surface. A slight tilt can cause a large splash and a painful impact. The impact force depends on entry angle and body shape; a perfect entry reduces the effective impact area, allowing the body to slip through with minimal disturbance.
It’s the same principle as a knife cutting through water—a streamlined shape displaces less water and creates less turbulence. That’s why the rip looks so clean: the water closes over the diver without a splash, as if they were swallowed by the pool.
The Numbers Behind the Sport
Olympic platform diving is always 10 meters, and springboard is 3 meters. But cliff divers push the limits: Red Bull Cliff Diving events have divers leaping from 27–28 meters, hitting speeds near 100 kilometers per hour. At those speeds, the entry is even more critical to avoid injury.
Difficulty ratings reflect the number of somersaults and twists. A dive with a high degree of difficulty might require more rotations, but it also demands more precise control. The physics doesn’t change; the challenge is in executing the required movements within the fixed time of flight.
The Bottom Line
A perfect dive is physics in action: a controlled fall, a conserved rotation, and a clean slice through water. The diver’s skill is in applying these principles—generating the right launch, adjusting body shape mid-air, and aligning perfectly at the moment of impact.
Next time you watch a dive, remember the physics at play. That brief flight is a demonstration of gravity, angular momentum, and fluid dynamics. The diver’s athleticism is in the precise application of these laws, turning a simple fall into a work of art.
Summary
- A dive from 10 meters takes about 1.4 seconds, reaching 14 m/s (50 km/h) at entry.
- Divers conserve angular momentum by tucking to spin faster and extending to slow down.
- Twists are a reorientation of the rotation axis, not a separate spin, using asymmetric body movements.
- The takeoff determines most of the dive’s success; springboards add elastic energy.
- A ‘rip’ entry minimizes splash by creating a smooth cavity with a vertical, streamlined body position.
FAQ
Q: How do divers spin so fast?
A: By tucking their arms and legs close to their center of mass, reducing moment of inertia, which increases spin rate due to conservation of angular momentum.
Q: Why do divers enter the water with their hands together?
A: To create a streamlined shape that reduces drag and minimizes splash, allowing a clean entry with less impact force.
Q: What is the difference between springboard and platform diving physics?
A: A springboard stores and returns elastic energy, helping the diver gain height and rotation, while a platform is rigid, requiring the diver to generate all motion from their own muscles.
Q: Why do divers twist during somersaults?
A: Twisting is a way to reorient the body’s rotation axis, using asymmetric movements to convert some somersault rotation into twist, allowing for more complex dives.
Q: Is air resistance important in diving?
A: No, at the speeds and distances involved, air resistance is negligible, so the trajectory is close to ideal projectile motion.
